RSM - MREC 15

The recycling plant consists of:

 - Overgrounded slurry basin usable capacity 25mc (1)

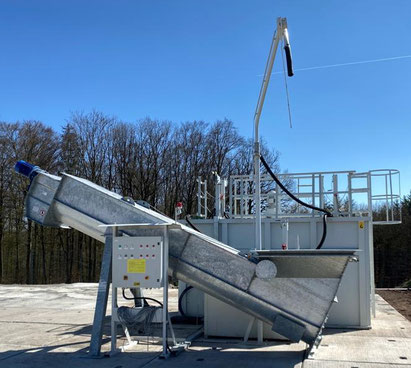

 - Overgrounded aggregate WAM separator capacity 15mc/h (2)

 - Pipe for truck mixers washing (3)

 - Proximity switch (4) when the truck mixer is near discharge area

 - Overgrounded intermediate basin usable capacity 2mc (5)

 - Submersible slurry pump for transmitting the slurry water
   from intermediate basin (5) into main basin (6)

 - Submersible slurry pump for transmitting the slurry water from basin (1)
   to the water weigher of concrete mixing pl. (7)

 - Submersible slurry pump for transmitting the slurry water
   to the pipe for truck-mixers washing (8)

 - Pneumatical flap (9) to the water weigher of concrete mixing plant.

 - Agitator for the slurry basin with supporting cross,
   with ascent staircase and protection railways. (10)

 - Electrical valve for clean water feeding separator (11)

 - Float level switches on the main slurry basin for min. protection level,
   working level and max. (overflow) level (12)

 - Supporting structures and cranes for pumps rising (13)

 - Float level switch on the intermediate slurry basin (14)

 - Control panel provided with visual and audible horn,
   heating system in winter time (15)

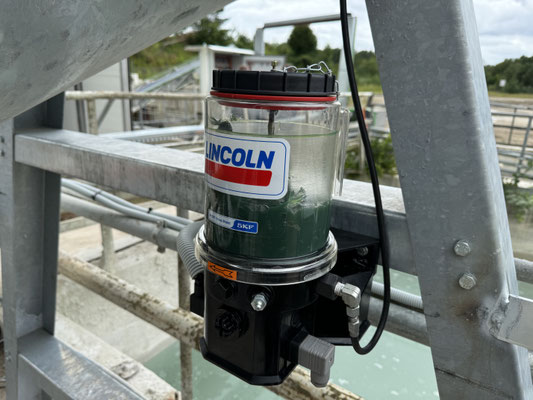

- including central lubrication
